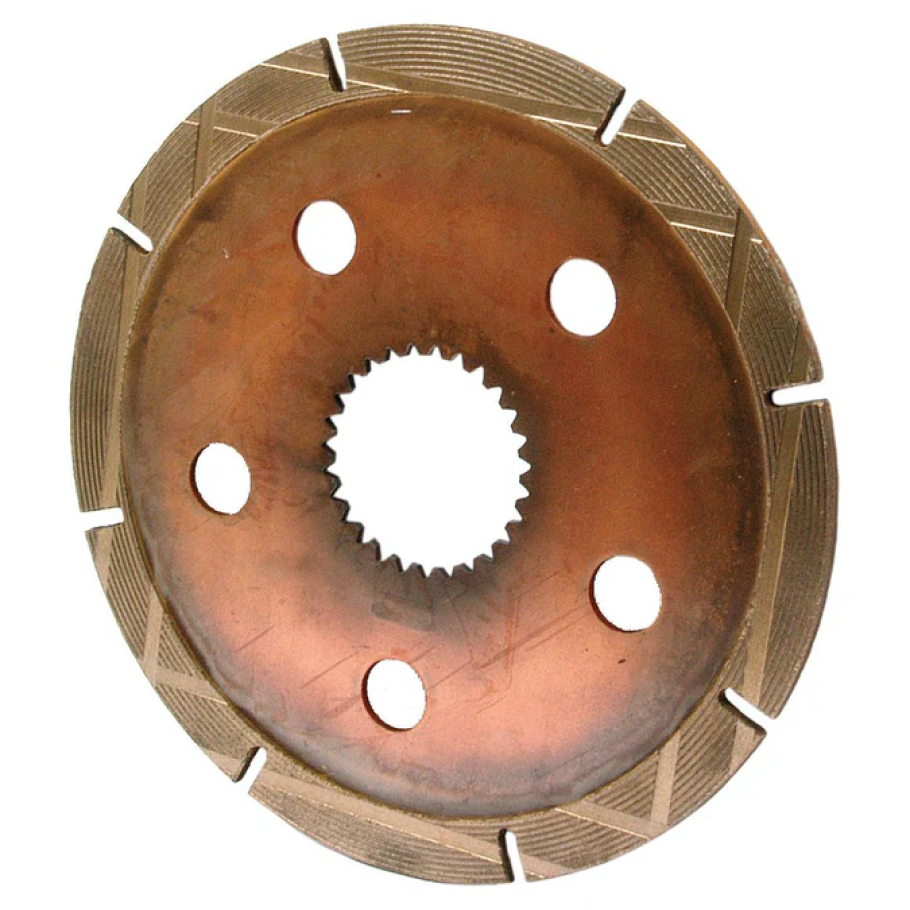

Brake Friction Disc. OD 224mm – S.40837?0.95 kg

OD (A) 224mm Lining Width (B) 18mm Thickness (C) 4.8mm Splines 27 Splines ID: (D) 55mm Splines OD: (E) 60mm
Product Specifications
A (mm): 224
B (mm): 18
Brand: Sparex
C (mm): 4.8
D (mm): 60
E (mm): 55
Lining Material: Sintered
Lining Width (mm): 18
Outer ? (mm): 224
Related products: 40830, 40838
Splines ID (mm): 55
Splines OD (mm): 60
Splines: 27
Tariff Code: 8708309190
Thickness (mm): 4.8

Suitable For Infomation
Landini?5830, 6030, 7830, LARGE 10000, LARGE 13000, LARGE 14500, LARGE 9550?Massey Ferguson?1004, 1004T, 1014, 1024, 1080, 1085, 1114, 1134, 1200, 1250, 133, 135, 145, 148, 152, 158, 165, 168, 185, 188, 20E, 20F, 230, 235 BRAZILIAN, 240, 240S, 243, 245, 250, 253, 255, 260, 261, 263, 265, 265 BRAZILIAN, 270, 271, 275, 275 BRAZILIAN, 282, 282 US BUILT, 283 BRAZILIAN, 285 (FR), 285 US BUILT, 290, 290 BRAZILIAN, 290 US BUILT, 292 BRAZILIAN, 295 BRAZILIAN, 296 BRAZILIAN, 298, 299 BRAZILIAN, 30B, 30D, 30E, 30H, 31, 350, 352, 355, 360, 362, 365, 372, 375, 375E BRAZILIAN, 382, 383, 390, 390E BRAZILIAN, 390T, 393, 396, 398, 399, 40, 40B, 40E, 415 BRAZILIAN, 4215, 4220, 4225, 4235, 4240, 4245, 425 BRAZILIAN, 4255, 4260, 4265, 4270, 4315, 4320, 4325, 4335, 4345, 435 BRAZILIAN, 4355, 4360, 4370, 440 BRAZILIAN, 445 BRAZILIAN, 460 BRAZILIAN, 461, 465 BRAZILIAN, 475 BRAZILIAN, 481 BRAZILIAN, 50, 50A, 50B, 50C, 50D, 50E, 50EX, 50F, 50H, 50HX, 5340 BRAZILIAN, 5355 BRAZILIAN, 5360 BRAZILIAN, 5365 BRAZILIAN, 560, 565, 575, 590, 592, 595, 60H, 650 BRAZILIAN, 660, 660 BRAZILIAN, 670, 675, 680 BRAZILIAN, 690, 698, 698T, 699 Valmet & Valtra 505, 6000, 605, 6100, 655, 6600, 6800, 705, 755, 8000, 805, 8100, 8200, 8400, 855, 905

Manufacture Information
Lucas 64321507GK?Massey Ferguson?1860 964M2, 1860964M2, 1669474M1?Same?15454590, 154.5459.0 Valmet & Valtra 30184800
