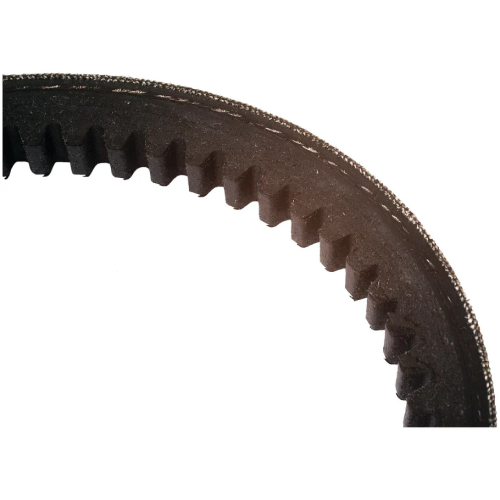

Drive Belts – AV13 Section – Belt No. AV13x1268

Product Specifications
Belt No.: AV13x1268
Brand: Sparex (Agribelt)
Datum length LD (mm): 1250
Depth (mm): 10
Depth ins: 3/8
Effective Length (ins): 49
Effective Length (mm): 1250
Inside length Li (mm): 1205
Inside length Li ins: 47
Outside length La (ins): 50
Outside length La (mm): 1268
Pitch Length (Lp) (Lw):: 1250
Related products: 14683
Section: AV13
Tariff Code: 4010390090
Top Width x Depth: 13 x 10mm (1/2” x 3/8”)
Type: Raw Edge Moulded Cogged Fan Belt
Width (ins): 1/2
Width (mm): 13

Suitable For Infomation
Landini?6550, 8550?Massey Ferguson?165, 168, 175, 178, 185, 186, 187, 188, 20, 260, 274SK, 294, 307, 330, 400, 410 UZEL, 415 BRAZILIAN, 4225, 4235, 4245, 4255, 430 UZEL, 50HX, 510, 520, 560, 565, 60H, 99

Manufacture Information
Belt References AV13x1268?Landini?2614B150, 2614B650, 2612423, 2614B060, 2614B059, 1874973M1, 2614B050, 893575M1, 1688988M1, 3637598M91?Massey Ferguson?2614B059, 2614B150, 2614B050, 2614B650, 893 575M1, 893575M1, 1688988M1, 3637598M91, 186976V1, 186976M1, 1874973M1, 3637598V91, 3637 598M91, 230350M1, 1447317M1, 0070108?Perkins?2614B050, 2614B650, 0070108, 0070190, 2614B150, 2612423
