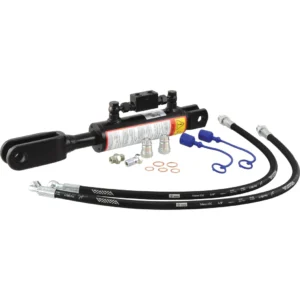

Hydraulic Levelling Box (Supplied with: Hoses) – Fork Hole ? 19mm – Fork Hole ? 26x60mm – Min. Length: 510mm, Cylinder Bore: 63mm. | Sparex Part No.S.113939?11.0 kg

Min. Length :510mm – Max. Length: 569mm – Width Internal (mm) 25 Top & 28 Bottom – Width External (mm) 50 Top & 58 Bottom Product Specifications Brand: Sparex Check Valve Position: Top Cylinder Bore (mm): 63 End Fittings A: Fork Hole ? 19mm End Fittings B: Fork Hole ? 26x60mm Maximum Length (mm): 569 Minimum Length (mm): 510 Related products: 33137, 33144 Rod ? (mm): 35 Supplied with: Hoses Tariff Code: 8412212090 Width External (mm): 50 Top & 58 Bottom Width External ins: 1 31/32 Top & 2 9/32 Bottom Width Internal (mm): 25 Top & 28 Bottom Width Internal ins: 63/64 Top & 1 7/64 Bottom Suitable For Infomation Case IH / International Harvester JX1060V, JX1070N, JX1070V, JX1075N, JX1075V, JX1095N, JX1095V, QUANTUM 100N, QUANTUM 100V, QUANTUM 105N, QUANTUM 105V, QUANTUM 110N, QUANTUM 110V, QUANTUM 65N, QUANTUM 65V, QUANTUM 75N, QUANTUM 75V, QUANTUM 80N, QUANTUM 80V, QUANTUM 85N, QUANTUM 85V, QUANTUM 90N, QUANTUM 90V, QUANTUM 95N, QUANTUM 95V Ford / New Holland T4.100N, T4.100V, T4.105N, T4.105V, T4.110N, T4.110V, T4.65V, T4.75N, T4.75V, T4.80N, T4.80V, T4.85N, T4.85V, T4.90N, T4.90V, T4.95N, T4.95V, T4020V, T4030N, T4030V, T4040N, T4040V, T4050N, T4050V, T4060N, T4060V, TN55V, TN55VA, TN60VA, TN65N, TN65V, TN70NA, TN70VA, TN75N, TN75NA, TN75V, TN75VA, TN95NA, TN95VA Manufacture Information Ford / New Holland 5193421, 5193433, 5186137
