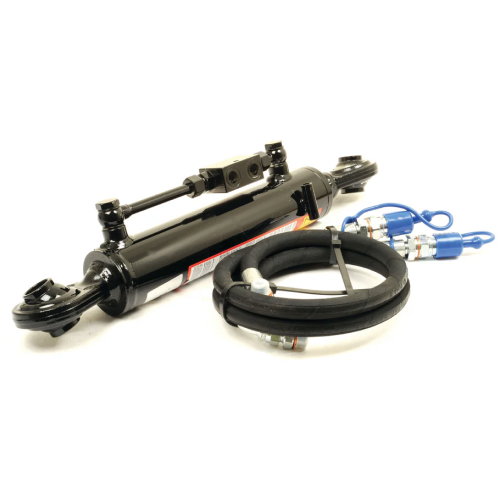

Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 70mm, Min. Length : 550mm. | Sparex Part No.S.331081?13.0 kg

Min. Length : 550mm, Max. Length : 790mm, Supplied with : Hose Set.
Product Specifications
Alternative to: 331071
Brand: Sparex
Category Implement End: 2
Category Tractor End: 1
Category: 1/2
Check Valve Position: Top
Cylinder Bore (mm): 70
Implement End: Ball
Lift kgs @180 bar: 5310
Maximum Length (mm): 790
Minimum Length (mm): 550
Related products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 164591
Rod ? (mm): 35

Suitable for Tractors up to HP/Kw: 150hp (110kW)
Supplied with: Hose Set
Tariff Code: 8412212090
Thrust kgs @180 (bar): 7080
Tractor End Fixing: Ball End
Tractor End: Ball

Suitable For Infomation
Ford / New Holland?TK100A, TK4.100, TK4.100M, TK4.110, TK4.110M, TK4.80F, TK4.80N, TK4.80V, TK4.90, TK4.90M, TK4020, TK4030, TK4030V, TK4040, TK4040M, TK4050, TK4050M, TK4060, TK80A, TK80MA, TK90A, TK90MA?Kubota?M6040 DTN-Q, M7040 DTN-Q, M8540 DTN-Q, M9540 DTN-Q?Landini?GLOBUS 50, GLOBUS 55, GLOBUS 60, GLOBUS 65, GLOBUS 70, GLOBUS 75, GLOBUS 80

Manufacture Information
Ford / New Holland?5197936
