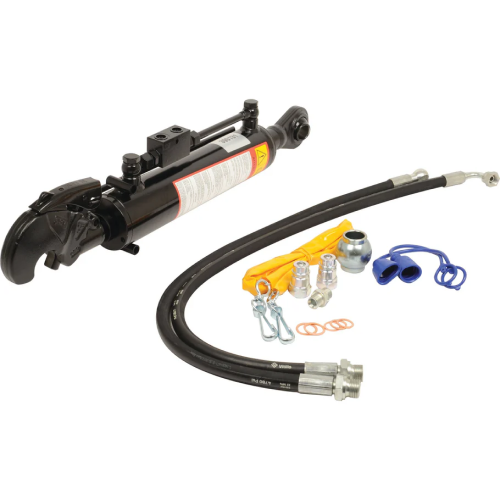

Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 70mm, Min. Length : 700mm. | Sparex Part No.S.331001?16.0 kg

Min. Length : 700mm, Max. Length : 1036mm, Supplied with : Hose set, chain & ball, marker label (with CBM Hook).
Product Specifications
Alternative to: 331011
Brand: Sparex
Category Implement End: 2
Category Tractor End: 2
Category: 2/2
Check Valve Position: Top
Cylinder Bore (mm): 70
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 5310
Maximum Length (mm): 1036
Minimum Length (mm): 700
Related products: 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199, 164591
Rod ? (mm): 35

Suitable for Tractors up to HP/Kw: 150hp (110kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 7080
Tractor End Fixing: Ball End
Tractor End: Ball

Suitable For Infomation
Case IH / International Harvester?FARMALL 105A, FARMALL 115A, FARMALL 65A, FARMALL 75A, FARMALL 85A, FARMALL 95A, FARMALL JX100, FARMALL JX110, FARMALL JX75, JX60, JX70?Ford / New Holland?TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95, TD5010, TD5020, TD5030, TD5040, TD5050, TD55D, TD60D, TD65D, TD70D, TD75D, TD80D, TD85D, TD90D, TD95D?Kubota?M110GX, M135GX?Landini?MYTHOS 100, MYTHOS 105, MYTHOS 110, MYTHOS 115, MYTHOS 90

Manufacture Information
Ford / New Holland?84301987
