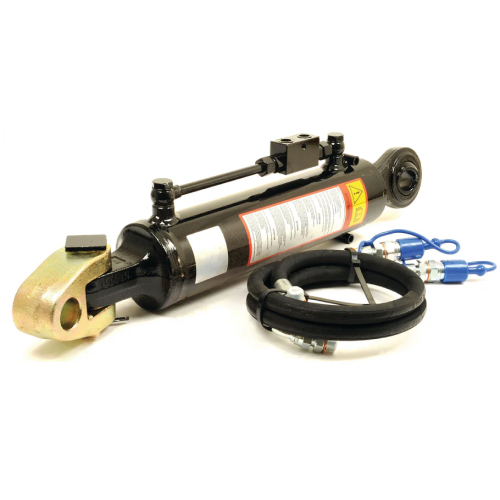

Hydraulic Top Link (Cat.3/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. | Sparex Part No.S.119712?46.55 kg

Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose Set.
Product Specifications
A (mm): 200
Alternative to: 119710
Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: Top
Cylinder Bore (mm): 120
Implement End: Ball
Lift kgs @180 bar: 18600
Maximum Length (mm): 995
Minimum Length (mm): 760
Related products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119704, 119709, 164592
Rod ? (mm): 50
Suitable for Tractors up to HP/Kw: 400hp (294kW)
Supplied with: Hose Set
Tariff Code: 8412212090
Thrust kgs @180 (bar): 24600
Tractor End: Knuckle

Suitable For Infomation
Claas AXION 920, AXION 930, AXION 940, AXION 950, AXION 960, XERION 4000, XERION 4500, XERION 5000 Ford / New Holland T8010, T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305 Massey Ferguson 8450, 8460, 8470, 8480, 8650, 8660, 8670, 8680, 8690, 8727, 8727 S, 8730, 8730 S, 8732, 8732 S, 8735, 8735 S, 8737, 8737 S, 8740, 8740 S

Manufacture Information
Massey Ferguson?4295829M91
