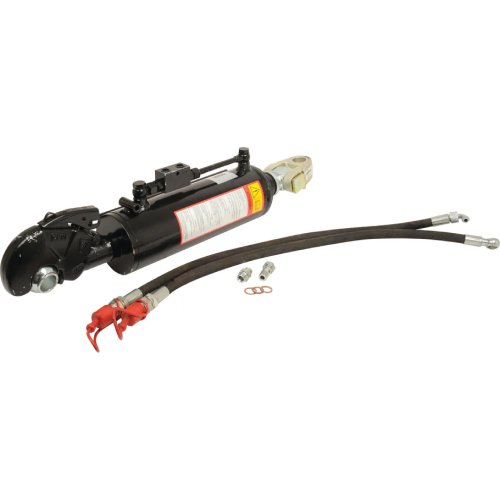

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 620mm. | Sparex Part No.S.144047?24.0 kg Tax included?Shipping?calculated at checko

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 620mm.
Product Specifications
Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: 45?
Cylinder Bore (mm): 90
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 8770
Maximum Length (mm): 840
Minimum Length (mm): 620
Related products: 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
Rod ? (mm): 45
Suitable for Tractors up to HP/Kw: 200hp (147kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 11700
Tractor End: Knuckle

Suitable For Infomation
Hurlimann?XT105, XT115, XT95?John Deere?6105R, 6115R, 6125R, 6130R, 6140R, 6150R, 6170R, 6190R, 6210R?Lamborghini?105 FORMULA, 115 FORMULA, 1556?Massey Ferguson?5S.105 DYNA 4, 5S.105 DYNA 6, 5S.115 DYNA 4, 5S.115 DYNA 6, 5S.125 DYNA 4, 5S.125 DYNA 6, 5S.135 DYNA 4, 5S.135 DYNA 6, 5S.145 DYNA 4, 5S.145 DYNA 6?McCormick?ZTX230, ZTX260, ZTX280?Same?ANTARES 130, ANTARES 150, IRON 100, IRON 110, IRON 115, IRON 120, IRON 125, SILVER 110, SILVER 115, SILVER 130, SILVER 145, SILVER 160, SILVER 180, SILVER 190, TITAN 145, TITAN 150, TITAN 160, TITAN 165, TITAN 190, TITAN 195 Valmet & Valtra G105, G115, G125, G135

Manufacture Information
Massey Ferguson?ACW231650C
