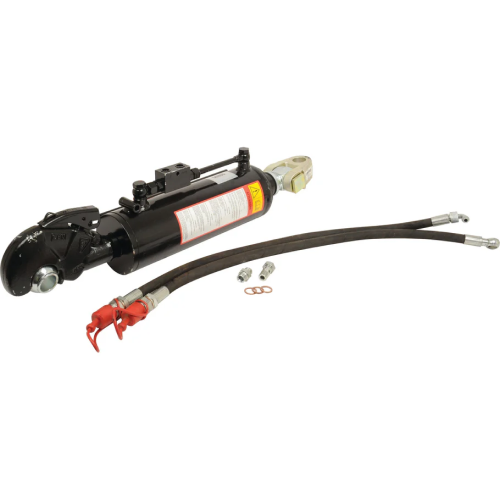

Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 550mm. | Sparex Part No.S.32930?11.7 kg
Original price was: £575.99.£518.39Current price is: £518.39.
Description
Min. Length : 550mm, Max. Length : 735mm, Supplied with : Hose set, chain & ball, marker label without knuckle & pin.
Product Specifications
Alternative to: 399811, 399812, 399813, 399814
Brand: Sparex
Category Implement End: 3
Category: -/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 735
Minimum Length (mm): 550
Related products: 10287, 10288, 10289, 10290, 10292, 32255, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197
Rod ? (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label without knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240
