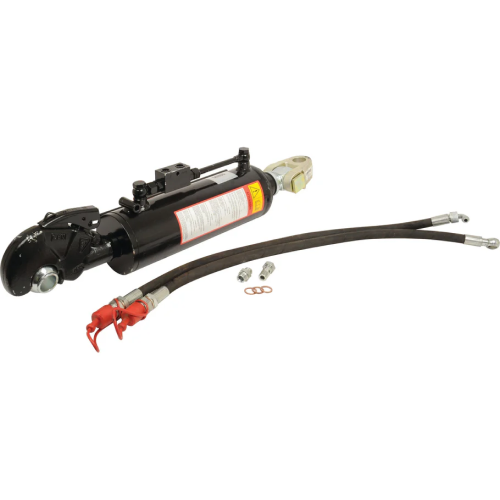

Hydraulic Top Link (Cat.4/4) Knuckle and Q.R CBM Hook, Cylinder Bore: 120mm, Min. Length : 760mm. | Sparex Part No.S.119726?49.64 kg

Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.

Product Specifications
A (mm): 200
Alternative to: 119711
Brand: Sparex
Category Implement End: 4
Category Tractor End: 4
Category: 4/4
Check Valve Position: Top
Cylinder Bore (mm): 120
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 18600
Maximum Length (mm): 995
Minimum Length (mm): 760
Related products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 118459, 118460, 119708, 119709, 164592, 163766, 163767
Rod ? (mm): 50
Suitable for Tractors up to HP/Kw: 400hp (294kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code: 8412212090
Top Link Ball Category: 4/4
Tractor End: Knuckle

Suitable For Infomation
Ford / New Holland?T9.390, T9.435, T9.450, T9.480, T9.505, T9.530, T9.560, T9.565, T9.600, T9.615, T9.645, T9.670, T9.700?John Deere?7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R

Manufacture Information
John Deere?RE311985
