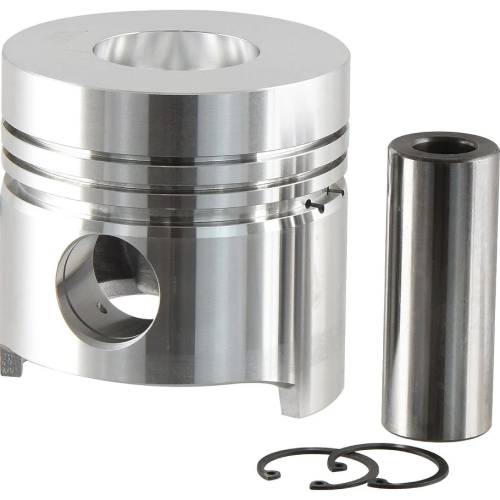

Piston (Standard) – S.59186?1.49 kg

Piston Length: 101.40mm Compression Height: 59.44mm Bore ?: 101.96mm Chamber Depth: 24.40mm Chamber ?: 48.46mm Pin ?: 31.93mm No. of Rings: 3
Al Fin Ring Groove: No
Bore ? (mm): 101.96
Brand: Sparex
Chamber Depth (mm): 24.40
Chamber ? (mm): 48.46
Compression Height (mm): 59.44
Crown Type: Dish Top
Number of Rings: 3
Pin ? (mm): 31.93
Piston Length (mm): 101.40
Related products: 59187
Size: Standard
Tariff Code: 8409990090
Specifications
Manufactures Specifications
Al Fin Ring Groove: No?Bore ? (mm): 101.96?Brand: Sparex?Chamber Depth (mm): 24.40?Chamber ? (mm): 48.46?Compression Height (mm): 59.44?Crown Type: Dish Top?Number of Rings: 3?Pin ? (mm): 31.93?Piston Length (mm): 101.40?Related products: 59187?Size: Standard?Tariff Code: 8409990090
Suitable For Information
Long Tractor?2510, 2510DTC, 2510SD, 2510SD-DTE, 2610, 2610DTC, 2610SD, 2610SD-DTC, 310, 310C, 310DT, 510, 510DT, 610, 610C, 610DT, 610DTE?Universal Tractors?1010, 320, 340, 530, 553, 640, 643
OEM Manufacture Information
Fiat?115.03.170, 11503170?Long Tractor?TX15107?Universal Tractors?8772111, 11503170, 115 03 170
