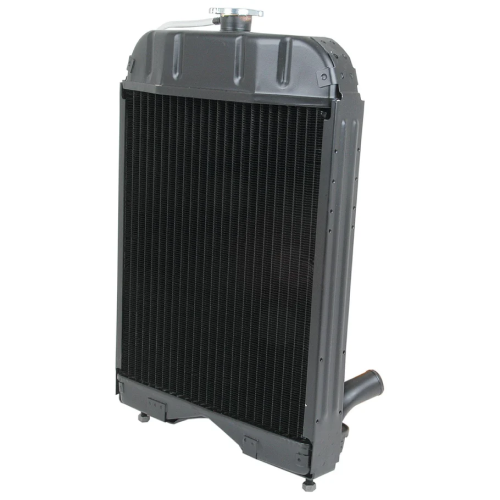

Radiator – S.42411?13.0 kg

Overall height: 590mm, Overall width: 405mm, Thickness: 66mm, Inlet: ?38mm, Outlet: ?35mm Straight top hose connection
A (mm): 590
B (mm): 405
Brand: Sparex
C (mm): 66
Core height (mm): 438
Core length (mm): 397
Core thickness (mm): 61
Core width (mm): 397
D (mm): 38
E (mm): 35
Inlet (mm): 38
Notes: Straight top hose connection
Number of Coolers: 4 Row
Outlet (mm): 35
Overall height (mm): 590
Overall width (mm): 405
Radiator Cap: S.63104
Related products: 42412, 42579, 63104
Supplied with Radiator Cap: Yes
Tariff Code: 8708919990
Thickness (mm): 66
With Intercooler: No

Specifications
Manufactures Specifications
A (mm): 590?B (mm): 405?Brand: Sparex?C (mm): 66?Core height (mm): 438?Core length (mm): 397?Core thickness (mm): 61?Core width (mm): 397?D (mm): 38?E (mm): 35?Inlet (mm): 38?Notes: Straight top hose connection?Number of Coolers: 4 Row?Outlet (mm): 35?Overall height (mm): 590?Overall width (mm): 405?Radiator Cap: S.63104?Related products: 42412, 42579, 63104?Supplied with Radiator Cap: Yes?Tariff Code: 8708919990?Thickness (mm): 66?With Intercooler: No

Suitable For Information
Massey Ferguson?135, 135 US BUILT, 203, 205, 35, 35 US BUILT, 35X, TO30?Perkins?A3.152 (CD)
