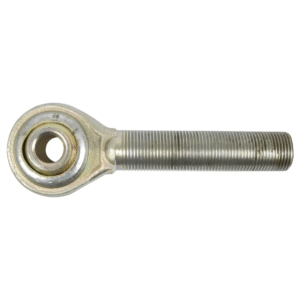

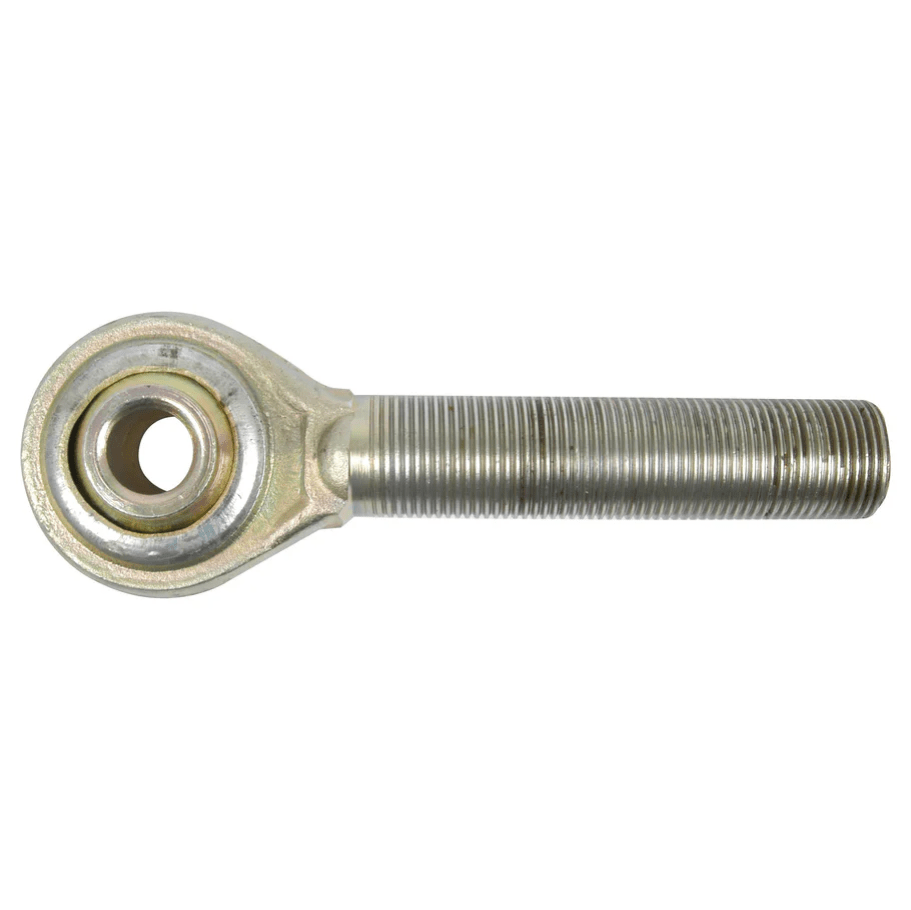

Top Link Ball End – M40x3 Metric – Cat.2 | Sparex Part No.S.52385?3.68 kg

Ball Bore ?:25.4mm, Thread length:190mm, Overall length:314mm Product Specifications Ball Bore ? (ins): 1 Ball Bore ? (mm): 25.4 Ball Width (ins): 2 Ball Width (mm): 50.8 Brand: Sparex Category: 2 End Radius (ins): 1 7/8 End Radius (mm): 48 Fitting: RH Overall length (ins): 12 23/64 Overall length (mm): 314 Tariff Code: 7303009090 Thread length (ins): 7 1/2 Thread length (mm): 190 Thread size: M40x3 Thread type: Metric Working length (ins): 10 1/2 Working length (mm): 266 Suitable For Infomation This product is not associated with any particular make or model Manufacture Information This product is not associated with any particular OEM part number
