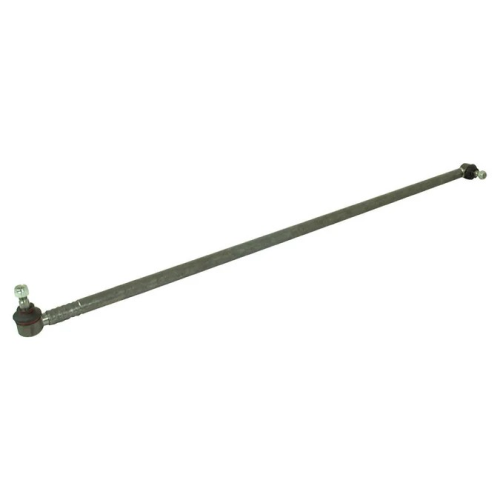

Track Rod/Drag Link Assembly, Length: 1330mm – S.63194?5.01 kg

Description
? A (mm): 30mm, ? B (mm): M16 x 1.5, ? C (mm): 20.3 – 18.2mm, D (mm): 23mm.
Brand: Sparex
C (mm): 18.5
Inner side thread ? A (mm): 30
Length (mm): 1330
Outer side thread ? B (mm): M16 x 1.5
Related products: 63168
Taper C (mm): 20.3 – 18.2
Taper length D (mm): 23
Tariff Code: 8708949900
Thread length E (mm): 23
Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 18.5?Inner side thread ? A (mm): 30?Length (mm): 1330?Outer side thread ? B (mm): M16 x 1.5?Related products: 63168?Taper C (mm): 20.3 – 18.2?Taper length D (mm): 23?Tariff Code: 8708949900?Thread length E (mm): 23
Suitable For Information
Case IH / International Harvester?AVJ55, AVJ60, AVJ70, FARMALL 65A, FARMALL 75A, JX55, JX55T, JX60, JX65, JX70, JX75, JX75T, JX80, JX90, JX95, VJ60?Fiat?466, 55-56, 55-66, 55-88, 55-90, 566, 60-56, 60-66, 60-88, 60-90, 60-93, 60-94, 65-46, 65-56, 65-66, 65-88, 65-90, 65-93, 65-94, 70-56?Ford / New Holland?3010S, 3630, 4010S, 5010S, 5630, T4.55S, T4.65S, T4.75S, TD5.65, TD5.75, TD5010, TD5020, TD55D, TD60, TD60D, TD65B, TD65D, TD70, TD70D, TD75D, TD80, TD80D, TD85D, TD90, TD90D, TD95, TD95D, TD95D HC PLUS?White Oliver?700
OEM Manufacture Information
Case IH / International Harvester?5135076?Fiat?05104081, 5104081, 5135076?White Oliver?312905780, 31-2905780
