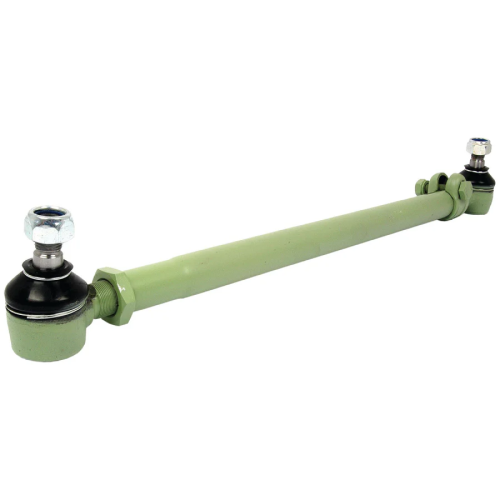

Track Rod/Drag Link Assembly, Length: 460 – 760mm – S.63179?2.39 kg

Description
? A (mm): 26mm, ? B (mm): M14 x 1.5, ? C (mm): 15.8 – 14.9mm, D (mm): 10.5mm.
Brand: Sparex
Inner side thread ? A (mm): 26
Length (mm): 460 – 760
Outer side thread ? B (mm): M14 x 1.5
Taper C (mm): 15.8 – 14.9
Taper length D (mm): 10.5
Tariff Code: 8708949900
Thread length E (mm): 18
Specifications
Manufactures Specifications
Brand: Sparex?Inner side thread ? A (mm): 26?Length (mm): 460 – 760?Outer side thread ? B (mm): M14 x 1.5?Taper C (mm): 15.8 – 14.9?Taper length D (mm): 10.5?Tariff Code: 8708949900?Thread length E (mm): 18
Suitable For Information
Allis Chalmers?5045, 5050?Fiat?450, 480, 500, 540, 550, 600, 640?Long Tractor?310, 350, 360, 445, 460, 460V, 510, 550, 560, 610?White Oliver?1265, 1270, 1355, 1365, 1370, 2-50, 2-60
OEM Manufacture Information
Allis Chalmers?72093230?Fiat?04961754, 4961754, 4961757, 594405?Long Tractor?TX10817?White Oliver?31-2900155, 30-2906076, 31-2990007, 72093230
