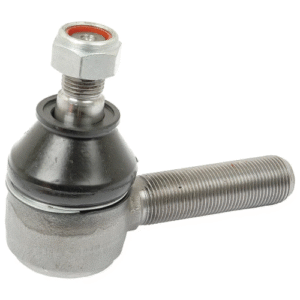

Track Rod, Length: 102mm – S.40188?0.76 kg

? A (ins): 13/16” x 16tpi, ? B (ins): 5/8” x 18tpi, ? C (mm): 19.5 – 17.45mm, D (mm): 16.42mm.
Brand: Sparex
C (mm): 19.9 – 17.6
Inner side thread ? A (ins): 13/16” x 16tpi
Length (mm): 102
Outer side thread ? B (ins): 5/8” x 18tpi
Taper C (mm): 19.5 – 17.45
Taper length D (mm): 16.42
Tariff Code:8708949900
Thread length E (mm): 23.3
Type: Male Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 19.9 – 17.6?Inner side thread ? A (ins): 13/16” x 16tpi?Length (mm): 102?Outer side thread ? B (ins): 5/8” x 18tpi?Taper C (mm): 19.5 – 17.45?Taper length D (mm): 16.42?Tariff Code:8708949900?Thread length E (mm): 23.3?Type: Male Thread – Straight

Suitable For Information
Leyland?2100, 245, 253, 255, 262, 270, 272, 282, 285, 344, 384, 502, 602, 702, 802?Massey Ferguson?165, 168, 175, 178, 185, 188, 261, 265, 270, 275, 282, 282 US BUILT, 283, 285 (FR), 290, 290 BRAZILIAN, 290 US BUILT, 30, 30D, 375E BRAZILIAN, 390E BRAZILIAN, 50, 50B, 50E, 50F, 50H, 50HX, 565, 575, 590, 60H, 670, 675, 690?Nuffield?3/45, 4/65

OEM Manufacture Information
Leyland?27H9421?Massey Ferguson?40188, 886802M91, 886 802M91?Nuffield?27H9421
