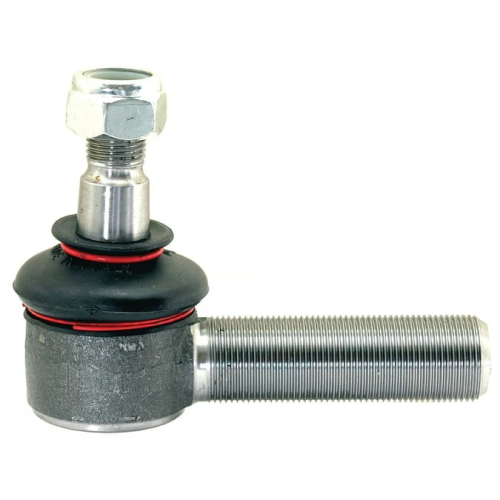

Track Rod, Length: 105mm – S.63242?0.71 kg

Description
? A (mm): M24 x 1.5 RH, ? B (mm): M16 x 1.5, ? C (mm) D (mm): 21mm.
A (mm): 74
B (mm): M16 x 1.5
Brand: Sparex
C (mm): 20.4 – 18.3
D (mm): 100
Inner side thread ? A (mm): M24 x 1.5 RH
Length (mm): 105
Outer side thread ? B (mm): M16 x 1.5
Taper length D (mm): 21
Tariff Code: 8708949900
Thread length E (mm): 23
Type: Male Thread – Straight

Specifications
Manufactures Specifications
A (mm): 74?B (mm): M16 x 1.5?Brand: Sparex?C (mm): 20.4 – 18.3?D (mm): 100?Inner side thread ? A (mm): M24 x 1.5 RH?Length (mm): 105?Outer side thread ? B (mm): M16 x 1.5?Taper length D (mm): 21?Tariff Code: 8708949900?Thread length E (mm): 23?Type: Male Thread – Straight
Suitable For Information
Landini?7830?Laverda?100, 120, 132, 150, 152?Massey Ferguson?250 BRAZILIAN, 250X BRAZILIAN, 265 BRAZILIAN, 275 BRAZILIAN, 283 BRAZILIAN, 290 BRAZILIAN, 292 BRAZILIAN, 375E BRAZILIAN, 390E BRAZILIAN, 425 BRAZILIAN, 435 BRAZILIAN, 440 BRAZILIAN, 445 BRAZILIAN, 460 BRAZILIAN
OEM Manufacture Information
Laverda?321053800?Massey Ferguson?1482009M91
