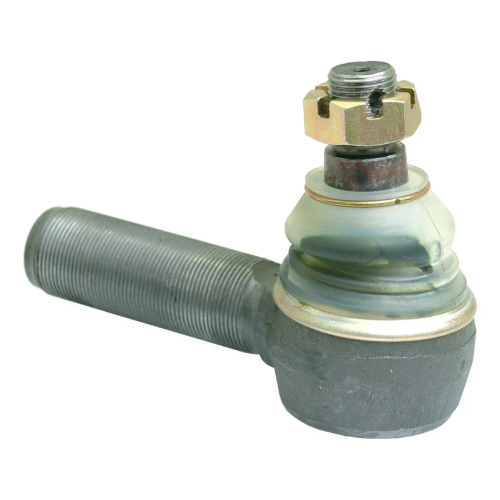

Track Rod, Length: 115mm – S.63260?1.33 kg

Description
? A (mm): M30 x 1.5 RH, ? B (mm): M20 x 1.5, ? C (mm): 26.5 – 23.5mm, D (mm): 30mm.
Brand: Sparex
C (mm): 24
D (mm): 125
Inner side thread ? A (mm): M30 x 1.5 RH
Length (mm): 115
Outer side thread ? B (mm): M20 x 1.5
Taper C (mm): 26.5 – 23.5
Taper length D (mm): 30
Tariff Code: 8708949900
Thread length E (mm): 25
Type: Male Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 24?D (mm): 125?Inner side thread ? A (mm): M30 x 1.5 RH?Length (mm): 115?Outer side thread ? B (mm): M20 x 1.5?Taper C (mm): 26.5 – 23.5?Taper length D (mm): 30?Tariff Code: 8708949900?Thread length E (mm): 25?Type: Male Thread – Straight

Suitable For Information
Case IH / International Harvester?1046, 1246, 248, 258, 268, 278, 385, 433, 485, 485XL, 523, 533, 553, 584, 585, 585XL, 624, 633, 644, 654, 684, 685, 685XL, 724, 733, 743, 743XL, 744, 744S, 745S, 745XL, 784, 785, 785XL, 824, 844, 844S, 844XL, 856, 856XL, 884, 885, 885XL, 946, HYDRO 84?Deutz-Fahr?DX 85, DX 86, DX 90, DX 92

OEM Manufacture Information
Case IH / International Harvester?3141529R93, 3141529R91?Landini?3141529R91, 3141529R92
