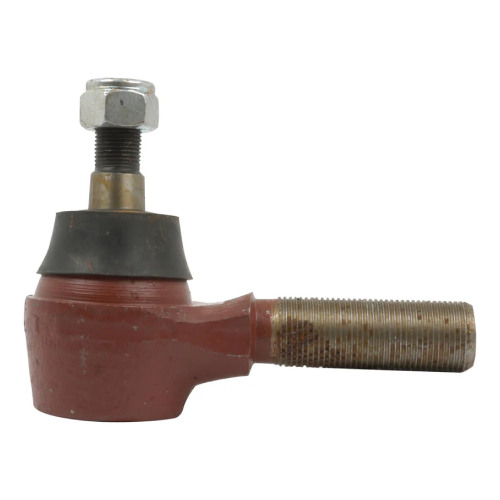

Track Rod, Length: 119mm – S.71279?1.72 kg

Description
? A (mm): M27 x 2 RH, ? B (mm): M18 x 1.5, ? C (mm): 22.4 – 19.9mm, D (mm): 27.5mm.
Brand: Sparex
C (mm): 22.4 – 19.9
Inner side thread ? A (mm): M27 x 2 RH
Length (mm): 119
Outer side thread ? B (mm): M18 x 1.5
Taper C (mm): 22.4 – 19.9
Taper length D (mm): 27.5
Tariff Code:8708949900
Thread length E (mm): 21.8
Type: Male Thread – Straight
Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 22.4 – 19.9?Inner side thread ? A (mm): M27 x 2 RH?Length (mm): 119?Outer side thread ? B (mm): M18 x 1.5?Taper C (mm): 22.4 – 19.9?Taper length D (mm): 27.5?Tariff Code:8708949900?Thread length E (mm): 21.8?Type: Male Thread – Straight
Suitable For Information
Zetor?10045, 10145, 10245, 11245, 12045, 12145, 12245, 14145, 14245, 16045, 16145, 16245, 5945, 6745, 6748, 6945, 8045, 8145, 8245, 9145, 9211, 9245, CRYSTAL 10045, CRYSTAL 10145, CRYSTAL 12045, CRYSTAL 12145, CRYSTAL 16045, CRYSTAL 8045, CRYSTAL 8145
OEM Manufacture Information
Zetor?88221019, 83221019
