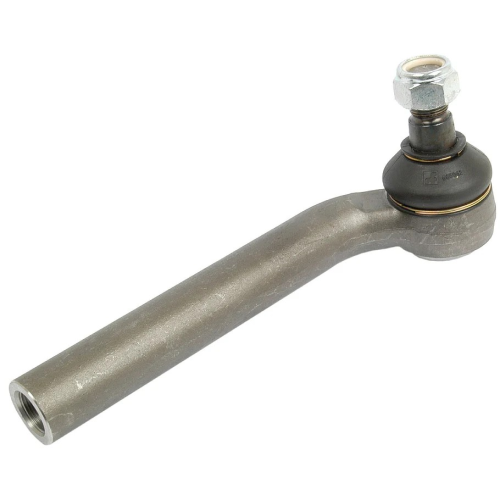

Track Rod, Length: 260mm – S.21187?2.78 kg

Description
? A (mm): M24 x 1.5 RH Female, ? B (mm): M22 x 1.5, ? C (mm): 27.7 – 24.7mm, D (mm): 31mm.
Product Specifications
Brand: Sparex
C (mm): 24.7-27.7
Fitting: LH
Inner side thread ? A (mm): M24 x 1.5 RH Female
Length (mm): 260
Outer side thread ? B (mm): M22 x 1.5
Related products: 21188, 65866, 137443, 168437
Taper C (mm): 27.7 – 24.7
Taper length D (mm): 31
Tariff Code: 8708949900
Thread length E (mm): 28.5
Type: Female Thread – Right Bend
Suitable For Infomation
John Deere?6010, 6010SE, 6020, 6020SE, 6110, 6110L, 6110SE, 6120, 6120L, 6120SE, 6200, 6200L, 6205, 6210, 6210L, 6210SE, 6215, 6220, 6220L, 6220SE, 6300, 6300L, 6310, 6310L, 6310S, 6310SE, 6320, 6320L, 6320SE, 6400, 6400L, 6403, 6405, 6410, 6410L, 6410S, 6410SE, 6415, 6420, 6420L, 6420S, 6420SE, 6500, 6500L, 6505, 6506, 6510, 6510L, 6510S, 6510SE, 6515, 6520, 6520L, 6520SE, 6600, 6603, 6605, 6610, 6610SE, 6615, 6620, 6620SE, 6715, 6800, 6810, 6820, 6900, 6910, 6910S, 6920, 6920S, 7210, 7220, 7320, 7405, 7410, 7420, 7425, 7500, 7510, 7520, 7525
Manufacture Information
John Deere?AL110887, AL168708, AL80534, AL116740, AL168710 ZF Axle APL2035, AS2025, APL2035Narrow, APL2025, AS2045, APL2045
Specifications
Manufactures Specifications
No Current Default OEM Information Is Available – Please Contact Us Before Ordering Should You Have Any Questions – Info@farmingparts.com
Suitable For Information
This product is not associated with any particular make or model
OEM Manufacture Information
This product is not associated with any particular OEM part number
