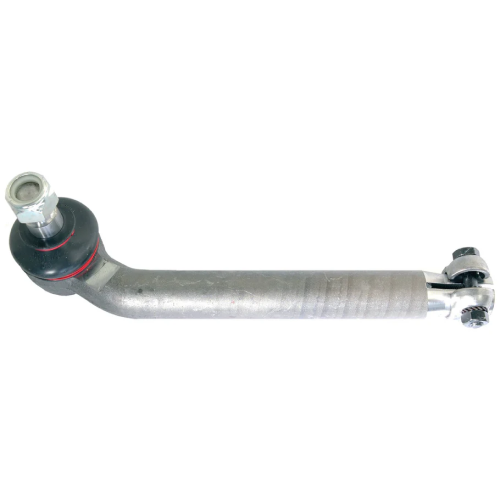

Track Rod, Length: 305mm – S.7811?3.2 kg

Description
? A (mm): M24 x 1.5 RH Female , ? B (mm): M20 x 1.5, ? C (mm): 26.5 – 23.5mm, D (mm): 29.5mm.
Brand: Sparex
C (mm): 23.5-26.5
Inner side thread ? A (mm): M24 x 1.5 RH Female
Length (mm): 305
Outer side thread ? B (mm): M20 x 1.5
Related products: 65866,7812
Taper C (mm): 26.5 – 23.5
Taper length D (mm): 29.5
Tariff Code:8708949900
Thread length E (mm): 25
Type: Female Thread – Left Bend
Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 23.5-26.5?Inner side thread ? A (mm): M24 x 1.5 RH Female?Length (mm): 305?Outer side thread ? B (mm): M20 x 1.5?Related products: 65866,7812?Taper C (mm): 26.5 – 23.5?Taper length D (mm): 29.5?Tariff Code:8708949900?Thread length E (mm): 25?Type: Female Thread – Left Bend
Suitable For Information
John Deere?2140, 2750, 2950, 3040, 3140?Steyr?9125, 9145, CVT 120, CVT 130, CVT 150, CVT 170
OEM Manufacture Information
John Deere?AL39315
