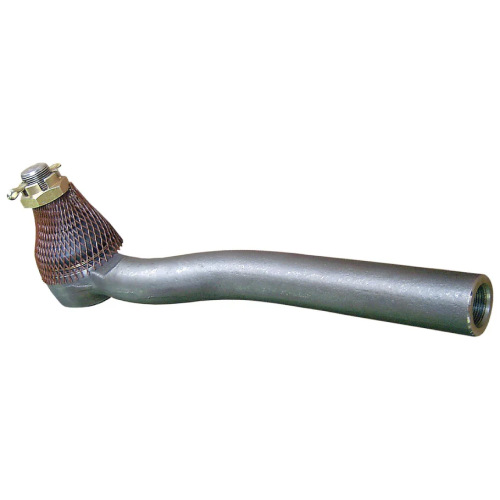

Track Rod, Length: 335mm – S.21195?3.17 kg

? A (mm): M24 x 1.5 RH Female, ? B (mm): M24 x 1.5, ? C (mm): 30.3 – 27.1mm, D (mm): 32mm.
Brand: Sparex
C (mm): 27.1-30.3
Inner side thread ? A (mm): M24 x 1.5 RH Female
Length (mm): 335
Outer side thread ? B (mm): M24 x 1.5
Taper C (mm): 30.3 – 27.1
Taper length D (mm): 32
Tariff Code: 8708949900
Thread length E (mm): 27
Type: Female Thread – Left Crank
Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 27.1-30.3?Inner side thread ? A (mm): M24 x 1.5 RH Female?Length (mm): 335?Outer side thread ? B (mm): M24 x 1.5?Taper C (mm): 30.3 – 27.1?Taper length D (mm): 32?Tariff Code: 8708949900?Thread length E (mm): 27?Type: Female Thread – Left Crank
Suitable For Information
Ford / New Holland?LM500?Manitou?VARIOUS
OEM Manufacture Information
Manitou?601210
