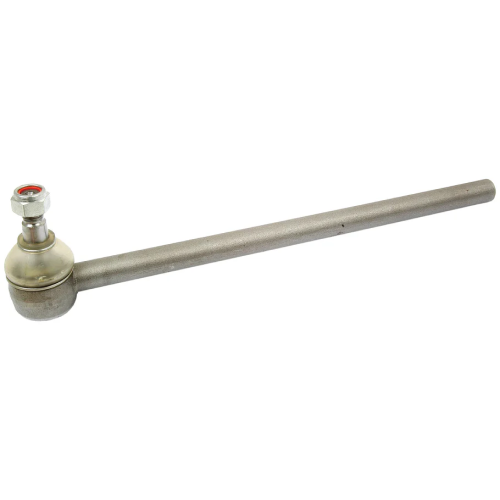

Track Rod, Length: 380mm – S.71200?3.0 kg

Description
? A (mm): ?19.75, ? B (mm): M14 x 1.5, ? C (mm): 18.1 – 15.77mm, D (mm): 19.2mm.
Brand: Sparex
C (mm): 18.3 – 15.5
Inner side thread ? A (mm): ?19.75
Length (mm): 380
Outer side thread ? B (mm): M14 x 1.5
Taper C (mm): 18.1 – 15.77
Taper length D (mm): 19.2
Tariff Code:8708949900
Thread length E (mm): 22.6
Type: No Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 18.3 – 15.5?Inner side thread ? A (mm): ?19.75?Length (mm): 380?Outer side thread ? B (mm): M14 x 1.5?Taper C (mm): 18.1 – 15.77?Taper length D (mm): 19.2?Tariff Code:8708949900?Thread length E (mm): 22.6?Type: No Thread – Straight
Suitable For Information
Case IH / International Harvester?238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 474, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 685, 685XL, 695, 695XL, 785, 785XL, 795, 795XL, 885, 885XL, 895, 895XL, 995XL, CX100, CX50, CX60, CX70, CX80, CX90, MX100C, MX80C, MX90C?McCormick?CX100, CX50, CX60, CX70, CX80, CX90?Volvo?2200, 2250, T500
OEM Manufacture Information
Case IH / International Harvester?3116406R3, 3116406R4, 3116406R1, 3116406R5?Landini?3116406R3, 3116406R4
