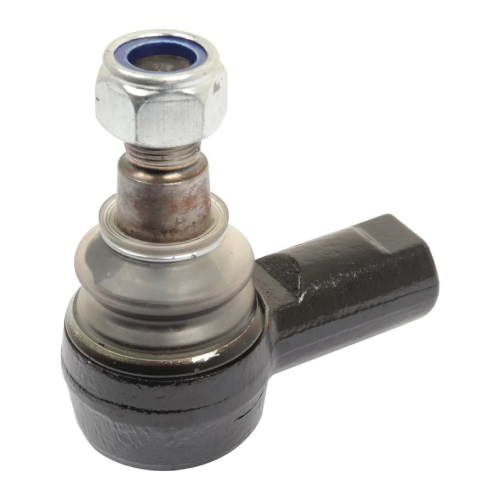

Track Rod, Length: 80mm – S.63264?1.29 kg

Description
? A (mm): M20 x 1.5 Female, ? B (mm): M20 x 1.5, ? C (mm): 26.5 – 23.5mm, D (mm): 30mm.
Brand: Sparex
C (mm): 24
D (mm): 71
Inner side thread ? A (mm): M20 x 1.5 Female
Length (mm): 80
Outer side thread ? B (mm): M20 x 1.5
Taper C (mm): 26.5 – 23.5
Taper length D (mm): 30
Tariff Code: 8708949900
Thread length E (mm): 27.5
Type: Female Thread – Straight
Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 24?D (mm): 71?Inner side thread ? A (mm): M20 x 1.5 Female?Length (mm): 80?Outer side thread ? B (mm): M20 x 1.5?Taper C (mm): 26.5 – 23.5?Taper length D (mm): 30?Tariff Code: 8708949900?Thread length E (mm): 27.5?Type: Female Thread – Straight
Suitable For Information
Case IH / International Harvester?1046, 1246, 258, 268, 278, 584, 585, 585XL, 644, 684, 685, 685XL, 743, 743XL, 744, 744S, 745S, 745XL, 784, 785, 785XL, 844, 844S, 844XL, 856, 856XL, 884, 885, 885XL, 946, HYDRO 84?Fendt?FARMER 304, FARMER 304 LS, FARMER 305, FARMER 305 LSA, FARMER 306, FARMER 306 LS, FARMER 307, FARMER 307 LSA, FARMER 308, FARMER 308 LSA, FARMER 309, FARMER 309 LSA, FARMER 310, FARMER 310 LS
OEM Manufacture Information
Case IH / International Harvester?3146035R91, 3146035R94, 3146035R92, 3146035R1, 3146035R95?Landini?3146035R93, 3146035R92
