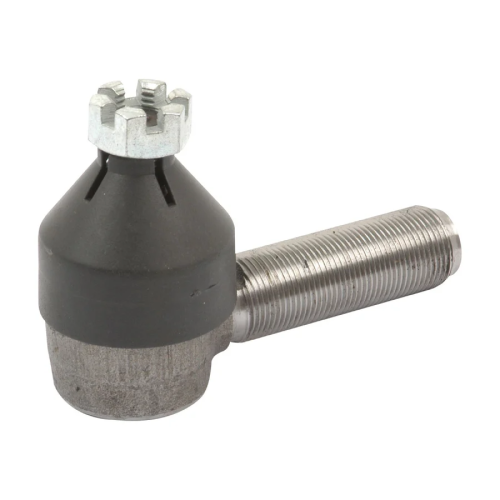

Track Rod, Length: 92mm – S.71264?0.62 kg

? A (mm): M22 x 1.5 RH, ? B (mm): M14 x 1.5, ? C (mm): 15.9 – 14.8mm, D (mm): 11mm.
Brand: Sparex
C (mm): 14.5
D (mm): 100
Inner side thread ? A (mm): M22 x 1.5 RH
Length (mm): 92
Outer side thread ? B (mm): M14 x 1.5
Taper C (mm): 15.9 – 14.8
Taper length D (mm): 11
Tariff Code:8708949900
Thread length E (mm): 18
Type: Male Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 14.5?D (mm): 100?Inner side thread ? A (mm): M22 x 1.5 RH?Length (mm): 92?Outer side thread ? B (mm): M14 x 1.5?Taper C (mm): 15.9 – 14.8?Taper length D (mm): 11?Tariff Code:8708949900?Thread length E (mm): 18?Type: Male Thread – Straight
Suitable For Information
Allis Chalmers?5040?Fiat?450R, 480?Long Tractor?310, 350, 360, 445, 460, 460V, 510, 550, 560, 610?Universal Tractors?1033, 300, 340, 350, 350DT, 445, 445DT, 500, 500DT, 530, 530DT, 550, 550DT, 640, 640DT
OEM Manufacture Information
Allis Chalmers?72090449?Fiat?04988567, 4988567?Long Tractor?TX10812?Universal Tractors?40 30 028, 4030927, 4030028, 40 30 927, 512137
