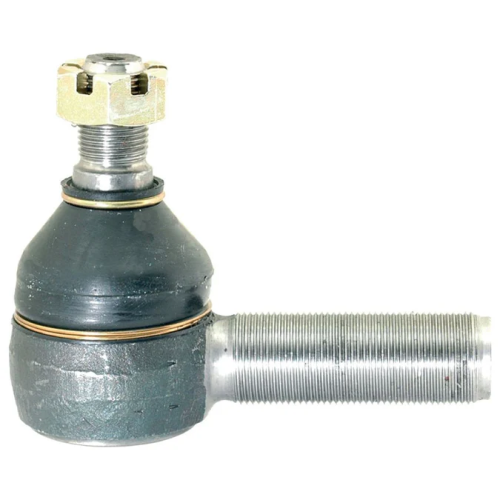

Track Rod, Length: 95mm – S.63215?0.88 kg

Description
? A (mm): M24 x 1.5 RH, ? B (mm): M18 x 1.5, ? C (mm): 21.6 – 20mm, D (mm): 16mm.
Brand: Sparex
C (mm): 22.1 – 19.9
D (mm): 100
Inner side thread ? A (mm): M24 x 1.5 RH
Length (mm): 95
Outer side thread ? B (mm): M18 x 1.5
Taper C (mm): 21.6 – 20
Taper length D (mm): 16
Tariff Code: 8708949900
Thread length E (mm): 17.5
Type: Male Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 22.1 – 19.9?D (mm): 100?Inner side thread ? A (mm): M24 x 1.5 RH?Length (mm): 95?Outer side thread ? B (mm): M18 x 1.5?Taper C (mm): 21.6 – 20?Taper length D (mm): 16?Tariff Code: 8708949900?Thread length E (mm): 17.5?Type: Male Thread – Straight

Suitable For Information
John Deere?1640, 1830, 1840, 2030, 2040, 2130, 2140, 2250, 2350, 2355, 2450, 2550, 2555, 2650, 2755, 2850

OEM Manufacture Information
John Deere?AL82826, AL37504, AL27532
