V Belt – B Section – Belt No. B55 | Sparex Part No.S.18846?0.29 kg

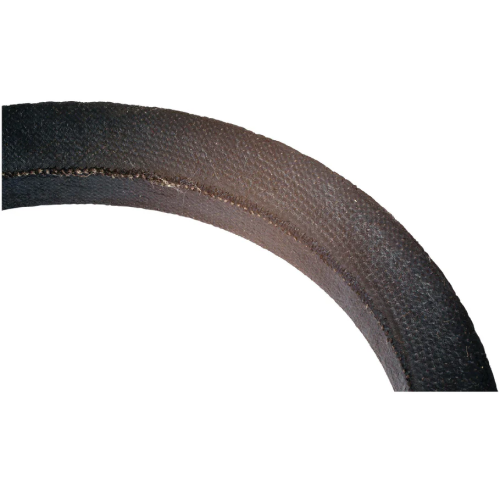

V Belt – B Section – Belt No. B55
Product Specifications
Belt No.: B55
Brand: Sparex (Agribelt)
Datum length LD (mm): 1437
Depth (mm): 11
Depth ins: 7/16
Effective Length (ins): 57
Effective Length (mm): 1437
Inside length Li (mm): 1397
Inside length Li ins: 55
Outside length La (ins): 58
Outside length La (mm): 1466
Pitch Length (Lp) (Lw):: 1437
Related products: 14683
Section: B
Tariff Code: 4010390090
Top Width x Depth: 17 x 11mm (21/32” x 7/16”)
Type: Standard V Belt (Smooth)
Width (ins): 21/32
Width (mm): 17

Suitable For Infomation
John Deere?3100, 3640

Manufacture Information
Allis Chalmers?70602944, 0502529, 502529 Belt References B55?Case IH / International Harvester?22364K, 662901R1, 66290R1, C29541?Ford / New Holland?80230043, 335258, 102137, 165073, 99B8620A, 117120, 233043, 230043?Hesston?55061, 56820, SO579B, 262592, 413070?John Deere?AR93012, E62749, AT51740, P40281H, N32248, P40281, R82174?White Oliver?S0579B, 401131D, 4011317, 523121E
