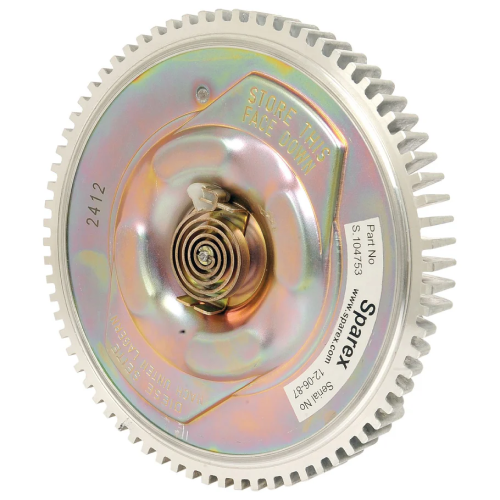

Viscous Fan Drive | Sparex Part No.S.104753?0.9 kg

Viscous Fan Drive
Product Specifications
Brand: Sparex
Fan Bolt Circle: 4 x M8 x 1.25 on a 100 mm BC
Fan Pilot (mm): 85.73
Number Of Bolt Holes: 4
Overall Diameter (mm): 152.4
PCD: 35.3
Shaft Bolt Circle and Holes: N/A
Shaft Pilot (mm): N/A
Shaft ? (mm): 35.3
Tariff Code: 8414900090
Thread size: M30 x 1.50
Thread type: LH Thread
Total length (mm): 56.7
? (mm): 152.4

Suitable For Infomation
Case IH / International Harvester?CS100, CS80, CS90?Steyr?9080M, 9090M, 9100M

Manufacture Information
Case IH / International Harvester?87334143
