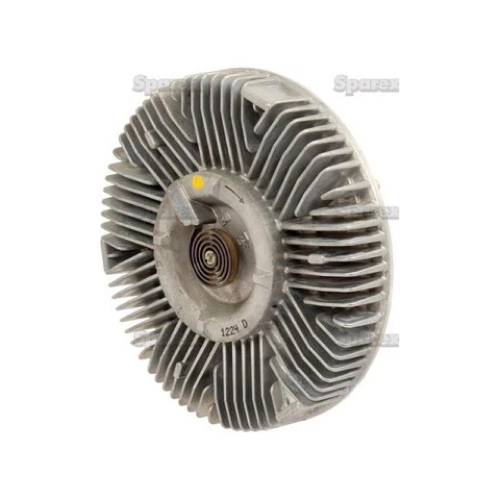

Viscous Fan Drive | Sparex Part No.S.104754?2.1 kg

Viscous Fan Drive
Product Specifications
Brand: Sparex
Fan Bolt Circle: 4 x M8 x 1.25 on a 96.77 mm BC
Fan Pilot (mm): 82.45
Number Of Bolt Holes: 4
Overall Diameter (mm): 164.5
PCD: 81.8
Shaft Bolt Circle and Holes: N/A
Shaft Pilot (mm): N/A
Shaft ? (mm): N/A
Tariff Code: 8414900090
Thread size: M30 x 2.00
Thread type: LH Thread
Total length (mm): 85.4
? (mm): 164.5

Suitable For Infomation
Fiat?M100, M115, M135, M160?Ford / New Holland?8160, 8260, 8360, 8560, TM115, TM125, TM135

Manufacture Information
Case IH / International Harvester?82000845?Fiat?82000845
