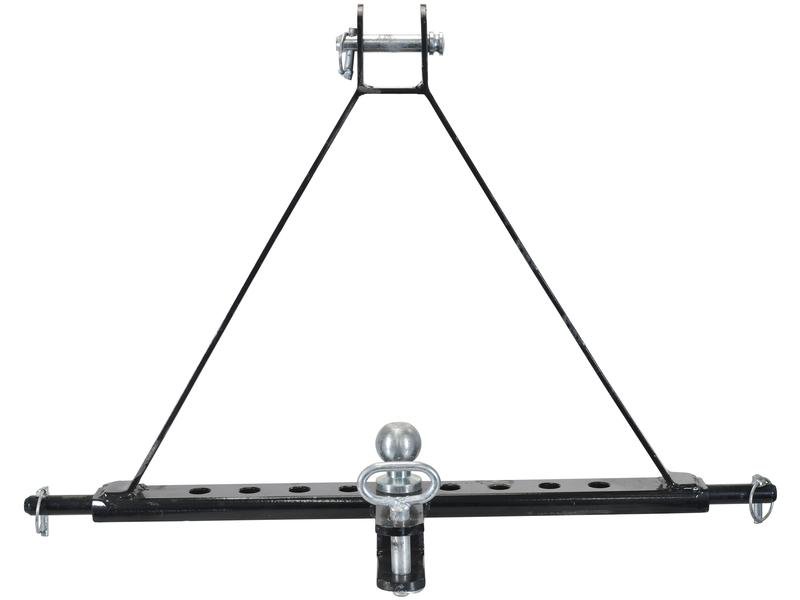

Drawbar Hitch System (Cat. 1) No. holes: 9, 775mm. | Sparex Part No.S.119468?12.5 kg

Pin ?: 22mm, Hole ?: 22mm, Hole centres: 54mm, Section: 25x63mm, Ball Size: 50mm, Overall height: 535mm. This item is for off-road use only Product Specifications A (mm): 25 B (mm): 63 Ball Size (mm): 50 Brand: Sparex C (mm): 775 Category: 1 D (mm): 57 E (mm): 114 F (mm): 54 G (mm): 22 Hole centres (mm): 54 Hole Centres Ins: 2 1/8 Hole ? (ins): 55/64 Hole ? (mm): 22 Linch Pin ? (mm): 10 Maximum Towing Load: 3T Notes: This item is for off-road use only Number of holes: 9 Overall height (ins): 21 1/16 Overall height (mm): 535 Overall length (ins): 30 33/64 Overall length (mm): 775 Pin ? (ins): 7/8 Pin ? (mm): 22 Related products: 167137 Section (mm): 25×63 Section ins: 1×2 1/2 Tariff Code: 7319909000 Top Pin Diameter mm: 19 Top pin ? ins: 3/4 Working length (ins): 2 1/4 Working length (mm): 57 Suitable For Infomation This product is not associated with any particular make or model Manufacture Information This product is not associated with any particular OEM part number
