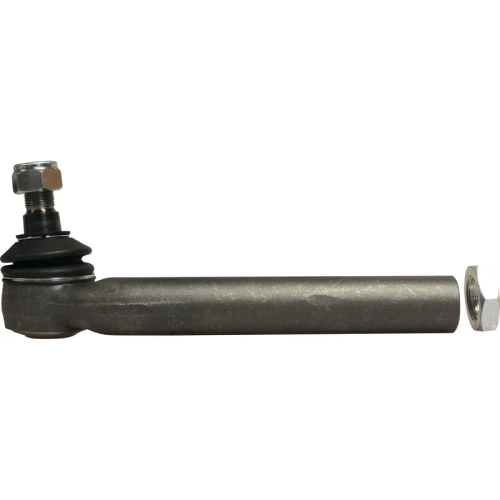

Track Rod, Length: 256mm – S.7817?2.18 kg

Description
? A (mm): M28 x 1.5 RH Female , ? B (mm): M20 x 1.5, ? C (mm): 26.4 – 23.5mm, D (mm): 29mm.
Brand: Sparex
C (mm): 23.5 – 26.5
Fitting: LH
Inner side thread ? A (mm): M28 x 1.5 RH Female
Length (mm): 256
Outer side thread ? B (mm): M20 x 1.5
Related products: 7818
Taper C (mm): 26.4 – 23.5
Taper length D (mm): 29
Tariff Code:8708949900
Thread length E (mm): 29
Type: Female Thread – Right Bend
Specifications
Manufactures Specifications
Brand: Sparex?C (mm): 23.5 – 26.5?Fitting: LH?Inner side thread ? A (mm): M28 x 1.5 RH Female?Length (mm): 256?Outer side thread ? B (mm): M20 x 1.5?Related products: 7818?Taper C (mm): 26.4 – 23.5?Taper length D (mm): 29?Tariff Code:8708949900?Thread length E (mm): 29?Type: Female Thread – Right Bend
Suitable For Information
John Deere?2955, 3040, 3050, 3140, 3150, 3155, 3350, 3640, 3650
OEM Manufacture Information
John Deere?AL68254, AL168701
